HOME >> Portable Axial Fan/Movable Axial Fan >> PMF-200

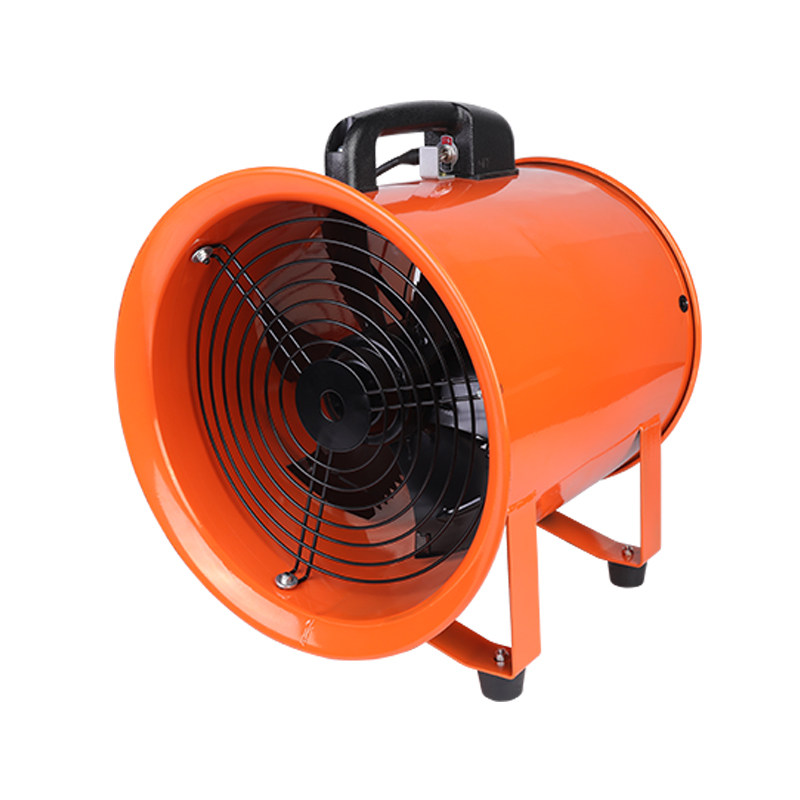

  • PMF-200

  • PMF-200

        Rotor and shell material: Q235 Insulation grade: F working system: S1 continuous working system
        Materials of fan impeller and shell: Galvanized sheet/Q235 INSULATION CLASS:F OPERATION DUTY:S1
        Fan steering: counterclockwise (from the end of the outlet) Bearing: maintenance-free ball bearing protection level: IP54 Ambient temperature: -30~60°C
        Fan rotation: ccw(viewed from outletwire end) BEARINGS:MAINTENANCE -FREE BALL BEARINGS
        Protection grade:IP54 AMBIENT                     TEMPERATURE:-30~60°C


    • 0.00
      0.00
Product Description

    Rotor and shell material: Q235 Insulation grade: F working system: S1 continuous working system
    Materials of fan impeller and shell: Galvanized sheet/Q235 INSULATION CLASS:F OPERATION DUTY:S1
    Fan steering: counterclockwise (from the end of the outlet) Bearing: maintenance-free ball bearing protection level: IP54 Ambient temperature: -30~60°C
    Fan rotation: ccw(viewed from outletwire end) BEARINGS:MAINTENANCE -FREE BALL BEARINGS
    Protection grade:IP54 AMBIENT                     TEMPERATURE:-30~60°C
